Rosin press

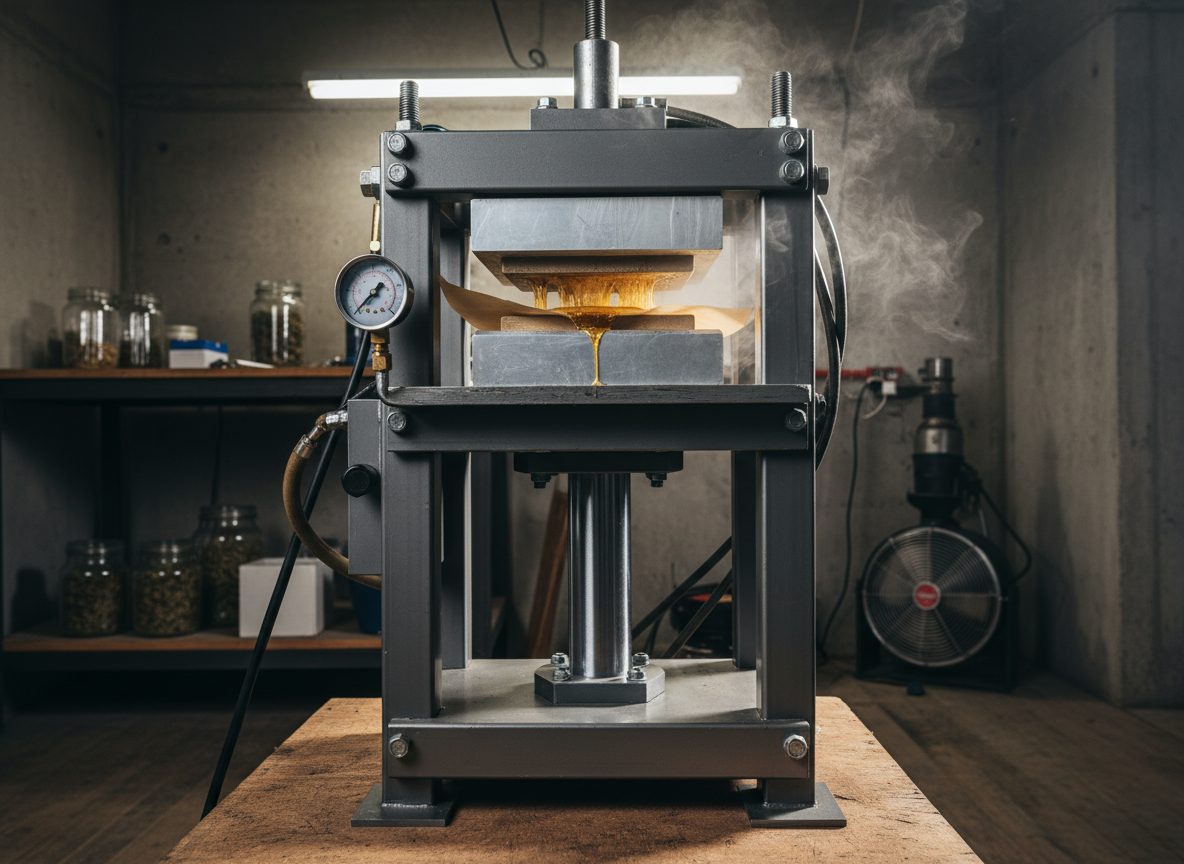

A rosin press is a purpose-built extraction device with two parallel heated platens (each with independent PID temperature control), a pressure gauge, and a frame rated for tons of force. Platen sizes scale with operator tier: 3"×5" personal, 4"×7" prosumer, and 6"×12" or larger for commercial operation. Frame force ratings typically run 1–25 tons, targeting an effective platen pressure of 300–1,000 PSI on the bag. Pressing above 1,000 PSI platen pressure risks "blowout" — bag rupture and plant-material contamination of the finished rosin. Heating is delivered by resistive cartridge heaters embedded in the platens, with independent top and bottom PID control allowing different temperatures on each plate — useful for techniques that preheat the bag from one side before applying full pressure. Drive options mirror the broader press category: manual screw, hydraulic bottle jack, electric hydraulic, and pneumatic air cylinder, in ascending order of speed and repeatability. Commercial producers generally standardize on electric hydraulic or pneumatic systems for consistent cycle times across shifts. → See also: Press, Rosin, Live rosin, Screen, Solventless
